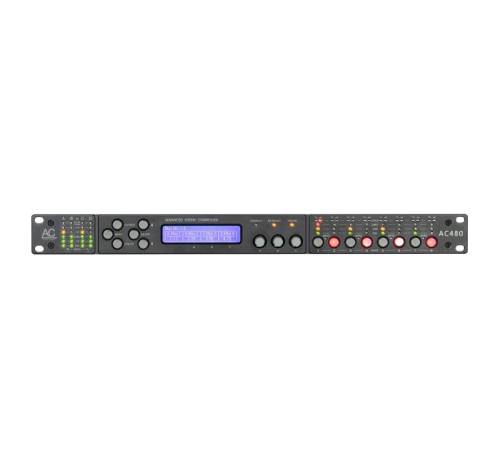

System characteristics:

The brand-new AC series processors, using DSP internal processing, high-end studio-level analog circuits and master-level compressor design, set a new benchmark for speaker processing design. D/A conversion adopts AC Grade technology to enhance the impulse response to obtain accurate bass response.

The AC series processor is a product with excellent audio performance and provides a powerful and intuitive interface. The Hifi amplifier with Audio Centron ID series cellular dynamic drive technology can get the best sound quality!

The main parameters of the system:

• 4 XLR inputs, 8 XLR outputs.

• Powerful processing functions, including 32 bit DSP chip processing, 96kHz sampling rate, 24 bit AD/DA conversion.

• Powerful input processing functions, including gain, noise gate, mute, phase, linkage adjustment, etc.

• Powerful output processing functions, including frequency division, 7-parameter equalization, gain, mute, compressor/limiter, phase, delay, linkage adjustment, etc.

System parameters:

• Delay: Each input channel has independent delay control, the delay value is 0-1000MS, less than 10MS, the step distance is 21US, and the step distance is 1MS.

• Polarity: in phase (+) reverse phase (-)

•Equalization: Each input channel has 31 bands of GEQ and 10 bands of PEQ. The adjustment parameters in the PEQ state are: center frequency point: 20Hz-20KHz, step forward: 1Hz, gain: ±20dB, step distance: 0.1dB .Q value: 0.404 to 28.8

•Mute: each channel has a separate mute control

•Mixed: each output channel can select different input channels individually, or any combination of input channels can be selected

•Gain: -36dB to +12dB, step distance is 0.1dB

• Delay: 0-1000ms.

•Equalization: Each channel can be set to 10 bands of equalization, with PEQ/LO-shelf/Hi-shelf optional

Frequency divider: low pass filter (LPF), high pass filter (HPF), filter type (PF Mode): LinkwitzRiley/Bessel/Butterworth, crossover point: 20Hz-20KHz, attenuation slope: 12dB/oct, 18dB /oct, 24dB/oct, 48dB/oct

•Limiter: Each output channel can set the compressor separately, the adjustable parameters are: Threshold: ±20dBμ, Step: 0.05dBμ, Starting time: 03ms-100ms, <1ms Step: 0.1ms;> 1ms, step distance: 1ms, release time: 2 times, 4 times, 6 times, 8 times, 16 times, 32 times the starting time

System specifications:

Input/output interface: input: XLR female XLR socket; output: XLR male XLR socket

Processor: 255MHz, 96KHz sampling frequency 32-bit DSP processor, 24-bit A/D and D/A conversion

Display: 2X24LCD blue backlight display settings, 8-segment LED display input/output level display

Input impedance: 20KΩ

Output impedance: Balance: 100Ω

Input range: >17dBu

Frequency response: 20Hz-20KHz (0~-0.5dB)

Signal to noise ratio: >110dB

Distortion: <0.01% (Output=0dBu/1KHz)

Separation: >80dB(1KHz)

PC interface: 1 USB interface on the front panel, 2 RS485 interfaces on the rear panel (RJ-45 seat), RS232 interface

Power consumption: ≤30W

Power supply: AC 90V/240V 50Hz/60Hz

Net weight: 4.1kg
