You can start your performance at any venue type. Fortunately, no matter where you choose, you can be confident that you can have the best expression without any compromise due to the site environment, because APDC strictly follows the highest standard system design concept, including all the following main functions:

•APDC (Advanced passive dispersion control);

•Automatic shielding of frequency independent dispersion;

•No cross pulse response (linear phase uncrossing system design);

•Quick lock-in 6-point rigging system;

•The subwoofer corresponding to the system has seamless frequency docking;

•F.I.R. filtering technology.

The APDC filter is here. Advanced passive dispersion control system

The sound is clearer and more delicate than ever before. When you start debugging the system, you will find that it is so simple. The artists on the scene will feel incomparably relaxed on the stage, you just need to preset the APDC in the AC system control system.

APDC technology will bring smooth frequency and phase. Even at almost exaggerated sound pressure levels, there will be a most special experience, because the linear phase system brought by APDC is close to the best human hearing.

The higher sound pressure level can keep clear even at full load.

You may think that more sound pressure levels are needed, but you want sound imaging to be the same as at low levels. With APDC, you can even share the most authentic sound with artists of any level. Even when the sound pressure is very high, if you think the peak value of 148db is almost crazy, APDC can still keep the sound and uniformity of the whole venue at the same level of clarity you want. All of these are in a complete APDC line array system.

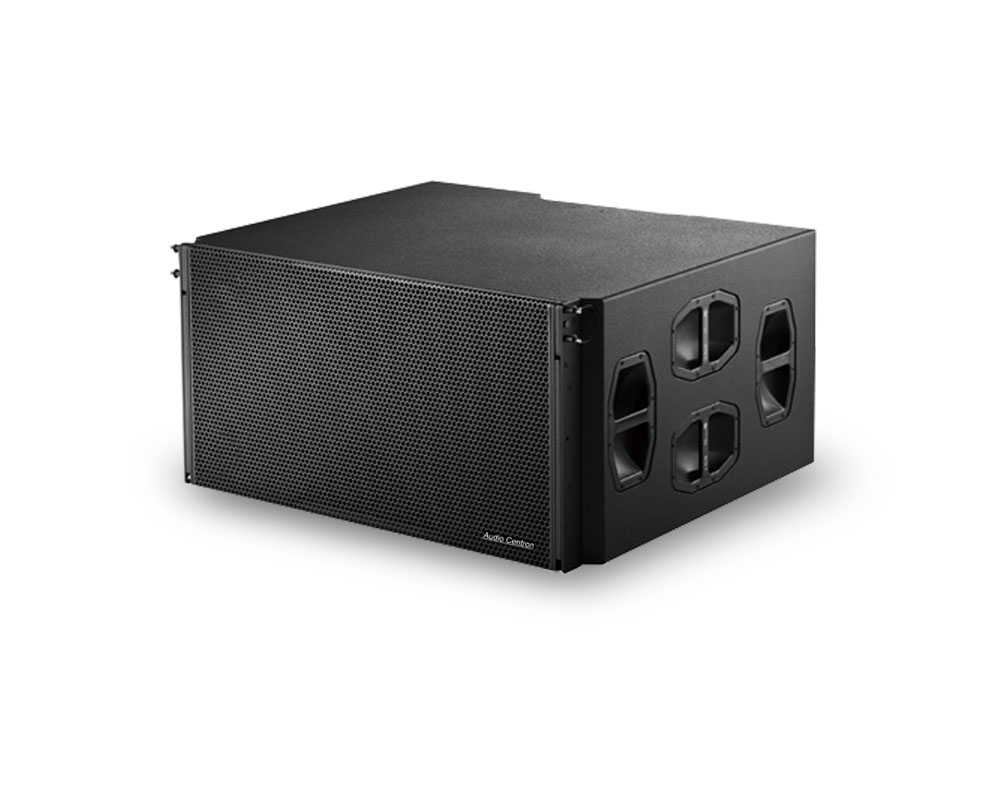

Power RMS continuous / peak: 1800 / 7200W

Sound pressure level efficiency (1W / 1m): 100dB (average in band)

Maximum sound pressure (peak 144db): 138db

Frequency range: 32hz-100khz

Vertical distribution setting: 0-12st per stage (0.5st between the first angles)

Loudspeaker: LF: 18 "× 3

Impedance: 4 Ω (front) / 8 Ω (after)

Connection: NL4 × 2, + 1 - 1

Dimensions (W x D x H): 1100mm x 945mm x 540mm

Weight: 106kg
